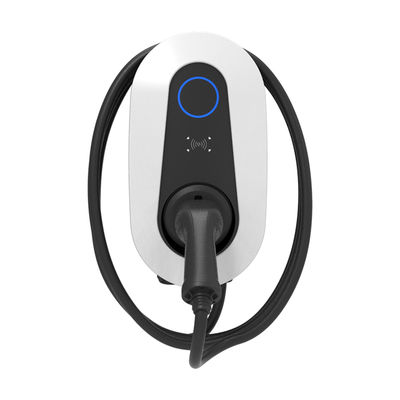

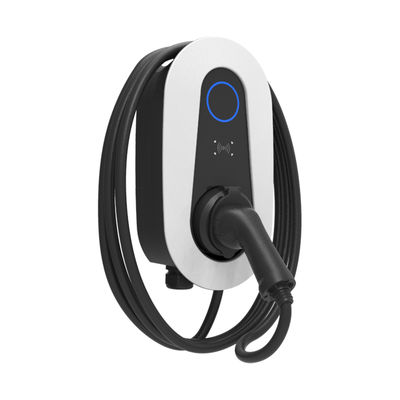

7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity

7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity
7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity

Grande immagine :  7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity

Dettagli:
Luogo di origine: Guangdong, Cina
Marca: KIWI
Numero di modello: S1-AC220V-7KW
Termini di pagamento e spedizione:
Quantità di ordine minimo: 2
Prezzo: $270-320
Contatto

7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity

descrizione
Standard di interfaccia: Tipo-1/Tipo-2/GB/T potenza di uscita: 7 kW
Tensione di ingresso: 200 - 220v Frequenza di input: 50Hz+-3% o 60 Hz+-3%
Connettività: WIFI/Bluetooth/4G Interfaccia utente: LCD o LED da 3,8 pollici
Protocolli di comunicazione: Proprietario e OCPP 1.6J/2.0.1 Lettore di RFID: ISO/IEC 14443 A/B MIfare RFID Reader
Valutazione della protezione: IP55 Temperatura operativa: -35 ° C a +50 ° C
Misurare: 202*104*388 mm Peso: 6 kg (senza colonna)
Tensione di uscita: AC 220V±20% Corrente di output: Ogni fase 0-32a
Lunghezza del filo di presa: 5m (personalizzabile)
Evidenziare:

7kW EV charging station with WiFi

,

Type 2 plug EV charger

,

AC EV charger with warranty

Wholesale EV Charging Station Electric Vehicle Car Charger AC EV Fast Type 2 EV Charging Station 7kw
7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 0 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 1 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 2 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 3 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 4 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 5
Product Specifications
Item Specification
Installation Method Wall-mounted, column (optional)
Rated Power 7KW, 11KW, 22KW
Charging mode APP(QRCode), Plug & Charge, RFID
Size (H * W * D) 202*104*388mm
Weight 6kg (Without column)
Input
Input voltage 230VAC/400 VAC/400 VAC
Input Current Each phase 0~32A
Leakage Protection Overcurrent, overvoltage, undervoltage, ground fault, integrated surge protection, RDC (typeA + DC6mA), over-temperature protection
Output
Output voltage AC 220V±20%
Output current Each phase 0-32A
Connection method
Number of plug 1
Charging connection method 1. Connection method C (plug version)
2. Connection method B (socket version)
Plug wire length 5m (customizable)
Plug standard Type-1/Type-2/GB/T
Human-computer interaction
LED LED Status light
Other
Protection level IP55
Operating temperature -35°C to +50°C
Relative humidity <95%, No condensation
Lifespan ≥10000 times
7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 6 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 7 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 8 7kW AC EV Charging Station with Type 2 Plug and WiFi Connectivity 9
Frequently Asked Questions
Q: How is your electric vehicle charging station after-sale service?
  • We will build a WhatsApp/Skype/WeChat service group with technical engineers and company leader if needed
  • We provide 24/7 online service, so you're welcome to contact us any time you need
  • We will change the part for free during warranty if non-human damage. For other problems, we'd like to supply the part at original cost
Q: How is your payment method?
Same as other EV charging stations suppliers, normally 30%-50% deposit and balance paid off before shipment. Special requirements please contact us for further discussion.
Q: How long is your normal delivery time?
  • For stock EV charger: can arrange shipment immediately after order confirmation
  • For custom AC EV charger (less than 100pcs): normally 7-15 days
  • For custom DC EV charger (less than 100pcs): normally 15-25 days
Q: Can I use my own card or app at your electric car charging stations?
Normally the RFID card and app have to identify our electric charger. We provide 3 free RFID cards for each charger.
Q: Will your electric car charger charge slower in winter?
The charging station may need slightly longer warm-up time before normal operation, but this has minimal effect on output power and can be ignored.
Q: Can you provide a video on how to install the electric vehicle charger?
Yes, we have an installation guide video. The process is simple and can be completed by anyone with basic electrical safety knowledge. We're also available online to assist with any questions.
Q: How can I become your exclusive agency?
You can be our agent if we don't have an exclusive agent in your market. For exclusive agency, we have annual sales targets. We welcome further discussion about details and are open to constructive advice.
